Air Conveyors – X-Stream™ Heavy Duty Ring-Vac™

• Available in standard and threaded versions for heavy duty applications. Designed for conveying materials over a longer distance both vertically and horizontally. Made of hardened anodized aluminum it helps prevent premature wear that could occur either an ordinary anodized aluminum or stainless steel Ring-Vac™.

  Pneumatic Conveying System Features:

  • Made of a hard anodized aluminum body with no moving parts to resist wear.
  • Standard sizes to fit standard hose diameter for easy clamping. Threaded versions connect easily to regular pipe thread: 1" (25mm), 1-1/4" (32mm), 1-1/2" (38mm), and 2" (51mm). Special sizes can be manufactured if required.
  • Utilizing a pressure regulator will control the flow material.
  • Instant ON/OFF with no moving parts, no electricity or explosion hazard.




  Heavy Duty X-Stream™ Ring-Vac™ Benefits:

  • Longer life in difficult environments than competitive models.
  • Ease of use.
  • Simple and easy control of material flow.
  • Maintenance free operation.



•

Ring-Vac™ compressed air conveying system - Compressed air enters at point (A) into a annular plenum chamber and injected into the throat of the unit though directed nozzles.  These jets of compressed air create a vacuum at the inlet (C) which draws in material and accelerates it through the unit and out at (D) conveying the material over a great vertical or horizontal distance.

Typical applications replace expensive, high maintenance blower systems and are particularly advantageous in intermittent applications.

Automotive:

• Convey all sorts of items from ball bearings, screws, metal and plastic parts from machinery, moulding machines in manufacturing and in assembly operations. .


Bottling:

• Loading and conveying caps in bottle filling lines.


Food:

• Convey caps, small items including food items from cheese bits to dried food.

• Fill or empty packaging material in shipping.


General Manufacturing:

• Convey all sorts of items from ball bearings, screws, metal and plastic parts.

• Replace costly blower systems, especially in intermittent applications.


Paper & Lumber:

• Trim removal in paper production.


Plastic:

• Trim removal in converting applications.


Printing:

• Waste trim removal in printing applications.


Pharmaceutical:

• Convey pills, capsules, and tablets.


Textile:

• Thread conveying.

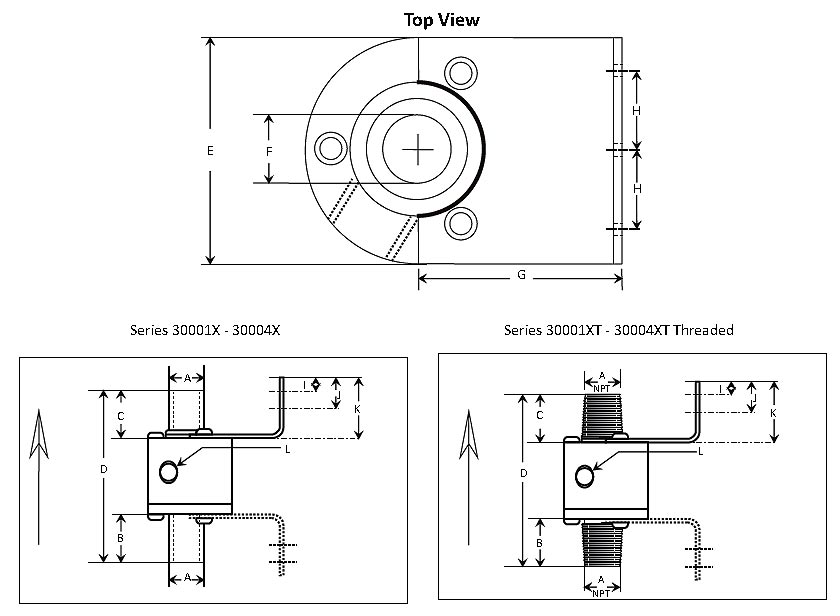

• Air Conveyors – Heavy Duty X-Stream™ Ring-Vac™ Pneumatic Conveying System Dimensions:

  PART NO.	A	B	C	D	E	F	G	H	I	J	K	L*
  Model 30001X, 30001XT	1.00 25.4	1.38 35.1	1.25 31.8	5.00 127	2.25 57.2	2.38 60.3	2.38 60.3	0.78 19.7	0.38 9.5	0.94 23.8	1.75 44.5	1/4 NPT
  Model 30002X, 30002XT	1.25 31.8	1.38 35.1	1.25 31.8	5.0 127	2.5 63.5	1.00 25.4	2.38 60.3	0.78 19.7	0.38 9.5	0.94 23.8	1.75 44.5	1/4 NPT
  Model 30003X, 30003XT	1.50 38.1	1.38 35.1	1.25 31.8	5.0 127	2.75 69.9	1.25 38.1	2.38 60.3	0.78 19.7	0.38 9.5	0.94 23.8	1.75 44.5	3/8 NPT
  Model 30004X, 30004XT	2.0 51.8	1.38 35.1	1.25 31.8	5.0 127	3.25 82.6	1.75 44.5	2.38 60.3	0.78 19.7	0.38 9.5	0.94 23.8	1.75 44.5	3/8 NPT



  * BSP adaptors supplied upon request free of charge.
