Product Overview

  • Easy to assemble and mount for use with Nex Flow™ blow-off nozzles, jets and Air Edger™ flat jets for blow of various lengths.

    Nex Flow™ Manifolds are a convenient way to mount rows of multiple nozzles, air jets and other small blow off products to dry, clean or cool wider surfaces. Come complete with mounting holes.

    All Manifolds are available with air inlet connections at the ends and rear. For smaller air flows, you may use one end connection or rear connection. For larger flows, you need to utilize the two end connections.

    Two basic Manifold sizes are available with three versions for each: Two (2) outlet unit, Four (4) outlet unit and Six (6) outlet unit. There is the Standard Flow Size and for high flows, the High Flow Size for each version. A flow guide is provided for each version and size.

    Manifolds may be held in place with the compressed air piping or by using the mounting holes on the units.

    Manifold System Features
    • Comes in three sizes
    • Easy to use and install
    • Flexible in use - multiple air inlets

    Manifold System Benefits
    • Allows to easily apply nozzles, jets or other blow off products in rows
    • Saves time in installation

Specifications

Part #
Description
46002 Two outlet Aluminum Anodized Manifold - total flow to 80 SCFM @ 80 PSIG
46004 Four outlet Aluminum Anodized Manifold - total flow to 140 SCFM @ 80 PSIG
46006 Six outlet Aluminum Anodized Manifold - total flow to 220 SCFM @ 80 PSIG
46002HF Two outlet Aluminum Anodized Manifold - total flow to 120 SCFM @ 80 PSIG
46004HF Four outlet Aluminum Anodized Manifold - total flow to 210 SCFM @ 80 PSIG
46006HF Six outlet Aluminum Anodized Manifold - total flow to 320 SCFM @ 80 PSIG





NOTE: Using one air inlet allows for 50% of rated flow - using both end air inlets allows for up to 100% of rated flow.

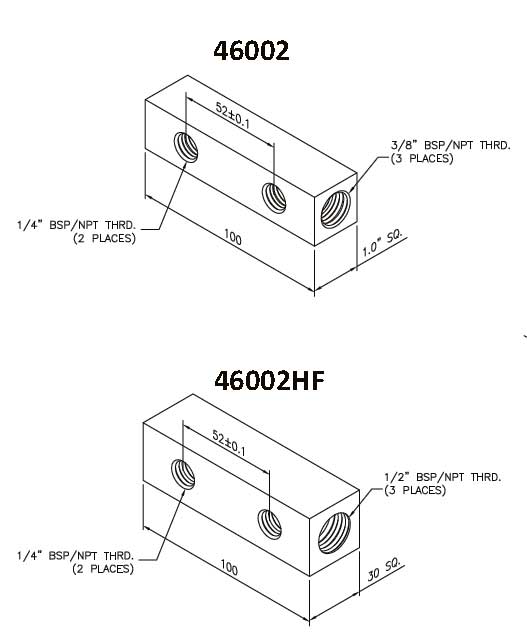

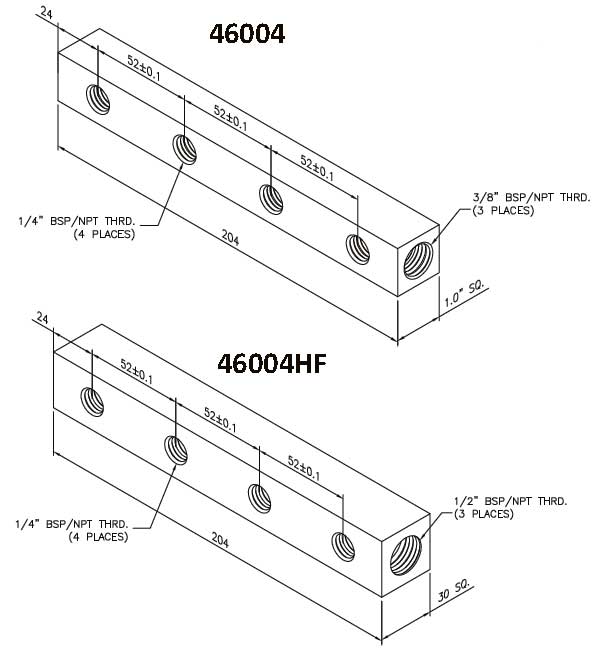

Dimensions
