Primer on Static Control



Electrostatic Charges on Static Control

The subject of these remarks is what is known as ionizers or static bars. Ionizers are associated with static electricity. Static is an electrical charge. Static electricity can occur in insulators or in conductors that are installed ungrounded.

Static electricity can also be found in nature. A cloud, for instance, can become so statically charged in a storm that there is a discharge towards earth. Adischarge can also occur when a positively charged cloud meets a negatively charged cloud. We see these discharge processes as lightning.

Undesirable electrostatic charges can also occur in various manufacturing processes. These physical phenomena can be observed in paper and foil processing, the plastics processing industry, and the textile industry. The major factor influencing the amount of static charge is the electrical conductivity of the material concerned. Other parameters are the speed of processing and the humidity of air.

Static electricity in industrial applications can be reduced or eliminated through increased air humidity, soaking, flame treatment or through the use of ionizers.

HAUG specializes in the manufacture of ionization systems for eliminating static electricity as well as devices which deliberately charge materials (what are known as charging generators). They are time proven, last long even in difficult environments and therefore the technology of choice for use with Nex Flow air blades as well as stand alone applications.

Static control components and static electricity eliminator and static charge eliminator: The basic static control components consist of a static bar or point which ionizes the air creating positive and negative ions and a power supply. The static bar or point is the static electricity eliminator. The static charge eliminator works from the power supply which is a high voltage transformer that creates an ion cloud at the pins of the bar or point static eliminator

The Origin of Electrostatic Charges on Static Control

Electron migrationThe origin of electrostatic charges used to be explained by friction processes (tribo-electricity).

Today semiconductor physics puts forward the following theory:

If two materials are brought into close mechanical contact, an electron migration takes place within the common barrier layer because of differing electron work functions. At the common barrier layer, also known as the Helmholz double layer, a voltage of a few millivolts is produced (ill.1)

The barrier layers of both materials can be regarded as a plate capacitor whose voltage U can be determined through:

Formula 1.1

Where Q is the charge and C the capacity of the capacitor. On separation of the two workpieces, their distance increases by several orders of magnitude. Thecapacity of the capacitor reduces correspondingly in accordance with the relationship.

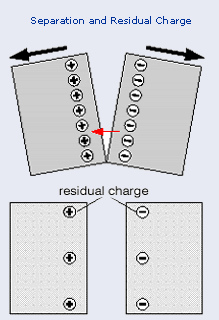

Separation and residual chargeFormula 1.2

Here E - Formel is the dielectric constant and E the dielectric of the intermediate layer. A is the area of the capacitor plates. There is therefore a contact phenomenon. This explains the influence of friction, since the friction influences the size of the contact area. On separation of the two workpieces, the voltage rises considerably (up to 10 kV and more) of the charge is not balanced (ill.2)

Measuring Static Electricity on Static Control

It is possible to measure static electricity indirectly by registering the effects it produces. Nowadays, field strength meters, which use the influence or modulation measuring method, are used. These devices operate without contact and measure the electrical field according to magnitude and polarity.

Influence measuring sets measure influence charges through the effect of the electrostatic field of a charged body. Modulation measuring units use mechanical modulation to convert the electrostatic field, which is constant over time, into a periodic quantity which is measured. This is the principle under which the rotary voltmeter, also called Feldmühle (field mill), works. In the rotary voltmeter a capacity is modulated through a rotating wing.

We know from: Formula 2.1

that the charge is Q of a plate capacitor is proportional to the voltage U applied to the capacitor, where C is the capacity of the capacitor.

If equation (2.1) is differentiated to time, we obtain Formula 2.2

Formula 2.3At the capacitor the applied voltage U is related to the electrical field strength E of the field between the plates through the equation where d is the distance between the plates. At a constant voltage, (2.2) and (2.3) tell us that:

Formula 2.4

The current  i flowing (and modulated) through the modulated capacity is therefore proportional to the field strength E.

Interference caused by Electrostatic Charges on Static Control

In the textile industry, electrostatic charges are undesirable for a variety of reasons:

Bobbin creel Bobbin creel

High electrostatic charges occur here when the thread is separated from the bobbin. Additional static electricity is produced when the thread is passed through guide eyelets.

The charged material attracts particles of dirt from the environment. Threads charged with the same sign repeal each other, and threads with opposing polarity attract each other. The threads flutter and the result is increased thread breakage.

Take-off device

A statically charged fabric web can only be taken off unevenly. The forces caused by charges can lead to the fabric winding itself round rolls and rollers.

Operating personel

People who approach electro statically charged fabric can experience very unpleasant electrical shocks.


NF45 + NFAIonizers generate ions, which are electro statically charged atoms and molecules. In an electrically neutral atom, the number of protons in the atom nucleus is identical to the number of electrons in the atom shell. In an ion, by contrast, the number of electrons is increased or reduced. Since the electrons carry the negative charge, a negative ion is produced if the number of electrons in the atom shell rises. A positive ion has one or more electrons less than a corresponding electrically neutral atom. Gaseous constituents of air are ionized. Solid particles and vapor in the air are charged.

Ionizers come in all shapes and sizes. The most frequently used ionizers are bar-shaped.

Passive Ionizer

Passive ionizer

Passive ionizers are constructed such as metallic tips are connected with the earth. If such an ionizer is brought near a charged material, a corona discharge is induced in the pins of the ionizer, thereby generating ions.

The effect of passive ionizers is limited. In general, they are only employed in combination with active ionizers and can be use to knock down a very large charge which I further eliminated by an active static bar. Other versions are tinsel, static string and various other products.

Active Ionizers

Principle of an active ionizerActive ionizers are manufactured according to various design principles. Alternating current devices are the most commonly used. HAUG power packs operate at system frequency (50 Hz or 60 Hz) and generate a voltage of approx. 7kV.

In ionizing bars, high voltage is fed to multiple pins. With HAUG ionizing bars, the pins are not connected directly to the high voltage, but are galvanically separated from it.

active ionizer on an automatic bag forming machineThis makes HAUG ionizing bars safe to touch yet powerful anti-static devices.

Active ionizer on an automatic bag forming, filling and sealing machine.

Positive and negative ions are generated at each pin in phase with the system frequency (ill.3); positive ions in the positive half-wave of the alternating current, negative ions in the negative half-wave. These ions neutralize charges which are located on a material below the ionizing bar, since ions of opposite polarity are attracted. Redundant ions flow over the sheath of the bar to the earth to eliminated unwanted static charge. An active ionizer of the type described is therefore self-regulating and a superior technology over many other types.

Air Assisted Ionizer

Ionizers of the kind described in the preceding section have an inherent disadvantage in that their range is relatively narrow (10 mm up to max. 200 mm or 1/3 inches to 8 inches). Since ions of both polarities are generated, the ions generated recombine at a certain distance from the ionizer. The ions are therefore neutralized at a greater distance. This phenomenon can be reduced by conveying the ions away from the ionizer using compressed air. In this way the effective range of an ionizer can be increased up to a maximum of approx. 70 cm. or 2-1/2 feet. With laminar flow such as that produced with an air blade air knife, and by flooding a surface over a greater distance with this laminar flow, the ions can cover an even greater distance. However, the further you are from the static bar, the longer the time to neutralize the surface. For longer distances and highly charged surfaces, a stronger static bar like the Haug Model VS bar may be necessary.

Compressed air is predominantly used when a surface is to be cleaned. The ionized compressed air is particularly effective at detaching particles of dust and dirt. The ionization eliminates the electrostatic forces binding the particles to the surface.

Nex Flow provides air-assisted ionizers in a wide variety of forms. There are nozzle and ring-shaped air-assisted ionizers and ion guns for manual operation and for stationary installation. Also available are bar-shaped ionizers which can be complemented by an air blade air knife, as well as other options if needed.

Low pressure blowers can also be used to extend the neutralization range but has little if any cleaning effect. However, they are use when distance is necessary and compressed air is not available.

 Note: The above material has been drawn in major part from an article by Steffen Ulrich Homolkaof Haug.
