Frigid-X™ Tool Cooling System

• All Metal Parts, Stainless Steel Body, Quiet - Under 70dBA, Tests Show Frigid-X™ Constantly Quieter Than Competition!

  Frigid-X™ Tool Cooling System for dry machining applications - replaces polluting and often toxic mist systems to improve dry machining operations. No mess, no residue and low in cost.

  It is efficient and can improve dry machining operations and assist in spot cooling applications for a variety of industrial machining processes but increasing matchining rates and extending tool life.

  Produces cold air at approximately 50º F (28º C) below supply air temperature. The unit is muffled for quiet operation. No moving parts assures long life, maintenance free operation while extending tool life and improving production rates.

  Can often replace costly mist coolants and certainly improves the quality and output of all types of dry machining operations from metals to plastics. Unit is low cost, no electricity with no moving parts and is essentially maintenance free.

  Tool Cooling System - Frigid-X™ - Advantages:

  • No Moving Parts
  • Quiet
  • Driven By Air, NOT Electricity
  • Small And Lightweight, Portable
  • Milling, Drilling, Routing And Surface Grinding
  • Low In Cost
  • Superior Design And Performance
  • Maintenance Free Operation
  • Made Of Durable Stainless Steel And Metal Arts - NO Cheap Plastic Parts
  • improves Production Rates And Finished Part Remains Dry
  • Prevents Burning
  • Improves Tolerance Control
  • Eliminates Coolant Costs
  • System Uses Strong Magnetic Base



  Tool Cooling System - Frigid-X™ - Use and Selection:

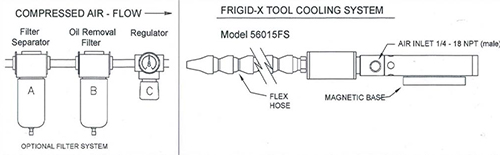

  Always use clean, dry compressed air. A manual filter is supplied with every system to insure dry air. If oil is a major problem in the compressed air line, an oil removal filter is also recommended. The temperature of the air can be controlled by reducing the pressure using either a regulator or manual shut-off valve. A solenoid valve may also be connected into the machine operation to turn the air supply to the cooling unit on-off as it is needed, thereby conserving compressed air usage.

  Dry Compressed Air and Dry Air Filters :

  Dry compressed air is easy to achieve utilizing a water removal filter with automatic drain and in the case of oil in the air lines, an oil removal filter with automatic drain. We recommend a 5 micron filter for water removal and a 0.03 micron filter for oil removal. These dry air filters will achieve the air quality required for any Nex Flow blowoff and cooling products.



  Model 57015FS	Model 57015FD
  Includes: Tool Cooler, Single Point Hose Kit, 3/8" (10mm) Cone Nozzle 1 1/4" (32mm) Fan Nozzle Filter With Manual Drain	Includes: Tool Cooler, Dual Point Hose Kit, Two (2) 1/4" (6mm) Cone Nozzles 1" (25.4mm) Fan Nozzle, Filter With Manual Drain
  Model 57025FS, 57030FS, 57040FS	Model 57025FD, 57030FD, 57040FD
  Includes: Tool Cooler, Single Point Hose Kit, 3/8" (10mm) Cone Nozzle 1 1/4" (32mm) Fan Nozzle, Filter With Automatic Drain	Includes: Tool Cooler, Dual Point Hose Kit, Two (2) 1/4" (6mm) Cone Nozzles 1" (25.4mm) Fan Nozzle, Filter With Automatic Drain

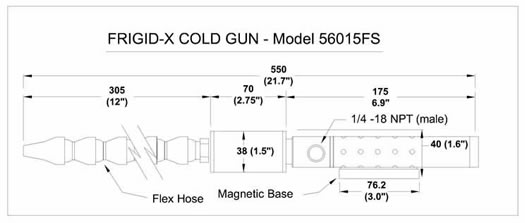

FRIGID-X COLD GUN - Model 56015FS

Compressed air enters at point (A) into the vortex tube component of the tool cooling. The vortex tube splits the compressed air into a cold (B) and hot (C) stream of air. The hot air from the vortex tube is vented to the atmosphere at point (D) after being muffled to reduce noise. Cold air enters into the muffler (E) and is then distributed through the hose distribution kit (F) and onto the tool being cooled. A strong magnet (G) holds the tool cooler onto the machine.

Tool Cooling System - Frigid-X™ uses a vortex tube to produce cold air at one end. Hot air is exhausted as waste at the muffled hot end.

The cold air is also muffled and exists through the flexible hose, which is used to direct the air to where cooling is required.

A magnetic base allows for portability and easy mount of the unit to the machine.

Replaces polluting and often toxic mist systems to improve dry machining operations. No mess, no residue and low in cost.

• Sharpening Tools
• Routing
• Machining Plastics
• Drill And Cutter Grinding
• Milling, Drilling, Routing And Surface Grinding
• Plunge And Form Grinding
• Setting Hot Melt Adhesives
• Laser Cutting
• Tire And Rubber Grinding
• Band Saw Blade Cooling
• Chill Roll Nip Cooling
