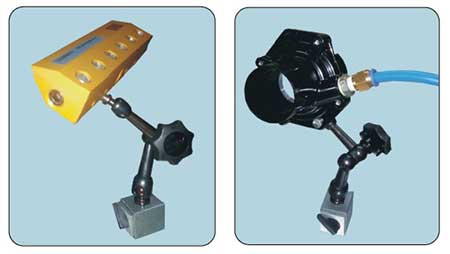

Nex Flow™ Mounting Systems for Air Knives & Air Amplifiers
Product Overview
-
Nex Flow™ Mounting Systems for air knives and air amplifiers provide a convenient and flexible way to utilize the products for blow-off and cooling applications. All Mounting Systems are made of powder coated steel. One knob controls the infinite flexibility of the system and secures it in place after the air knife or amplifier is properly positioned. Optional magnetic base can secure it to a magnet accepting platform. Rugged and secure positioning.
Specifications
Part # |
Description |
| Mounting System for X-Stream Air Blades | |
| 10991X1 | System for 6" to 18" aluminum and 6" to 15" stainless steel - NF60003 + Bracket + screws |
| 10991X2 | TWO systems for aluminum 24" to 54" - 2 sets NF60003 + 2 Brackets + screws |
| 10992X1 | System for 18" stainless steel - DG60003 + Bracket + screws |
| 10992X2 | TWO Systems needed for 24" to 36" stainless steel - 2 sets DG60003
+ 2 Brackets + screws
|
| 10993X2 | TWO Systems for 42"to 48" stainless steel - 2 sets MG60003 + 2 brackets + screws |
| 10994X2 | TWO Systems for 54" stainless steel - 2 sets MG70003 + 2 brackets + screws |
| Mounting System for Standard Air Blades | |
| 10991A1 | System for 6" to 18" aluminum and 6" to 15" stainless steel - NF60003 + Bracket + screws |
| 10991A2 | TWO systems for aluminum 24" to 54" - 2 sets NF60003 + 2 Brackets + screws |
| 10992A1 | System for 18" stainless steel - DG60003 + Bracket + screws |
| 10992A2 | TWO Systems needed for 24" to 36" stainless steel - 2 sets DG60003 + 2 Brackets + screws |
| Mounting System for Air Amplifiers | |
| AMMS | System for AM10, AM20, AM40 - NF60003 + screw |
| 40001MTS-MS | System for 40001 and 40001G and 40001S - NF60003 + 40001MTS + screw |
| 40002MTS-MS | System for 40002 and 40002G and 40002S - NF60003 + 40001MTS + screw |
| Optional Items | |
| NF0037 | Optional mounting magnet for Air Blade Mounting System 10991X1, 10991X2 (Need two for 10991X2) and for Air Amplifier Mounting System |
| DG0036 | Optional mounting magnet for Air Blade Mounting System 10992X1, 10992X2, 10993X2 and 10994X2 (Need two for 10992X2, 10993X2 and 10994X2) |
| NF60003 | Mounting arm only for 10991X1 and 10991X2 and for AMMS, 40001MTS-MS and 40002MTS-MS |
| DG60003 | Mounting arm only for 10992X1 and 10992X2 |
| MG60003 | Mounting arm only for 10993X2 |
| MG70003 | Mounting arm only for 10994X2 |
| 10999X | Bracket Only for Air Blades plus Screws (5) |
| 10998X | Screws Only (5 screws per kit) for air Blades - EACH |
| 10997X | Bracket Only for X-stream air blade |
| 10999 | Bracket for Standard Air Blade (on special order) plus srews (5) |
| 10997 | Bracket Only for Standard air blade |
| MS | Spare Screw for Amplifier Mounting System |
| 40001MTS | Mounting Bracket for Model 40001, 40001G and 40001S |
| 40002MTS | Mounting Bracket for Model 40002, 40002G and 40002S |
